How to Choose Wall Printer Printhead – Ultimate Comparison Guide

04/29/2025

Printhead – The Heart of Wall Printer

In wall printing, the choice of wall printer printhead directly determines the print quality, speed, efficiency, and difficulty of maintenance. Different printheads vary significantly in maintenance, durability, and printing results, making the right selection critical for project success and cost control.

This guide compares 4 mainstream Epson wall printer printhead: Epson I3200, Epson DX7, Epson I1600, and Epson DX10 (TX800). We also discuss the crucial topic of single vs. dual printhead setups, helping you make a smart decision based on real-world needs.

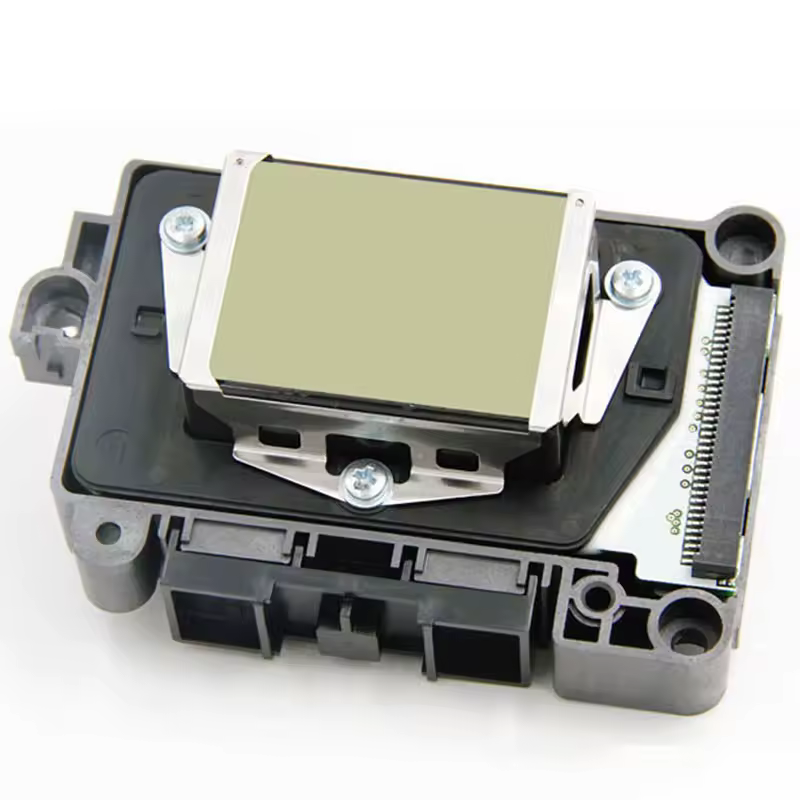

Epson I3200 Printhead

Principales caractéristiques

Number of Channels: 8 channels, supports simultaneous CMYKW printing.

Nozzle Quantity: 3,200 nozzles, delivering high speed and detailed output.

Maximum Resolution: Up to 4800 dpi.

Printhead Type: Industrial-grade printhead.

Expected Lifespan: 3–5 years under regular use.

Application: Ideal for high-speed, high-precision wall printing and DTF transfer printing.

epson i3200 print head use by iwp wall printer Features

Summary

Long-Term Value: Industrial-grade design ensures longer service life, lower maintenance costs, and more stability for intensive use.

High Speed and High Precision: I3200 delivers both exceptional speed and outstanding printing quality, perfect for large wall printing projects even under tight deadlines.

CMYKW One-Pass Printing: Enables vivid, rich color output on dark surfaces without the need for multiple passes.

DTF Capability: The I3200 also supports Direct to Film (DTF) printing, helping users expand into new business areas and revenue streams.

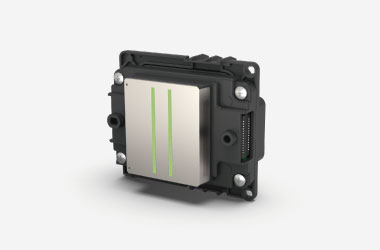

Epson I1600 Printhead

Principales caractéristiques

Number of Channels: 4 channels, only supports CMYK printing.

Nozzle Quantity: 1,600 nozzles.

Maximum Resolution: Up to 2400 dpi.

Printhead Type: Non-industrial printhead.

Expected Lifespan: 1–1.5 years.

Application: Suitable for small- to medium-sized projects with limited requirements.

Summary

Entry-Level Option: Provides basic print quality but cannot perform simultaneous CMYKW printing. To achieve full-color and white printing, dual-head setups are often necessary, adding complexity.

Limitation: Lower speed, fewer nozzles, and reduced durability compared to industrial-grade options.

Tête d'impression Epson DX7

Principales caractéristiques

Number of Channels: 8 channels, supports simultaneous CMYKW printing.

Nozzle Quantity: 1,440 nozzles.

Maximum Resolution: Up to 2880 dpi.

Printhead Type: Non-industrial printhead.

Expected Lifespan: 1–1.5 years.

Application: Versatile for medium and large wall printing projects.

Summary

Proven Stability: DX7 is a mature, widely adopted solution with consistent reliability, iWP-001 equipped with this print head.

Rentable: A solid balance between print quality and budget.

Performance Note: While durable and stable, it does not match the I3200 in lifespan or long-term productivity.

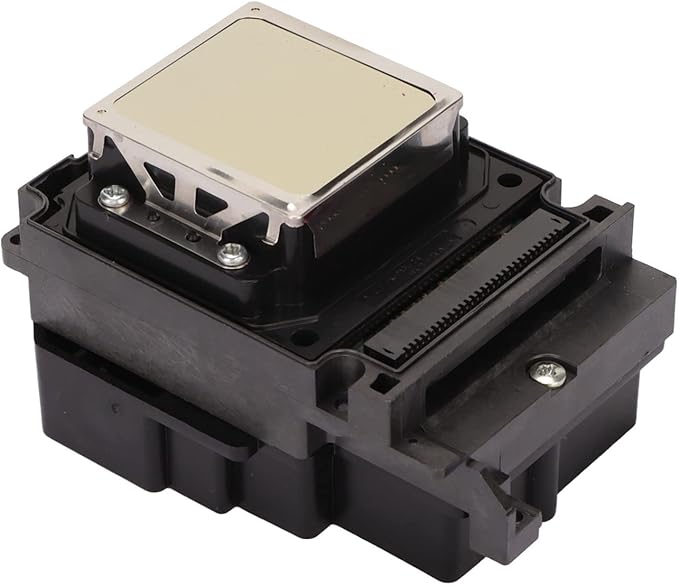

Epson DX10 Printhead

Principales caractéristiques

Number of Channels: 6 channels, supports CMYKW printing.

Nozzle Quantity: 1,080 nozzles.

Maximum Resolution: Up to 1440 dpi.

Printhead Type: Non-industrial printhead.

Expected Lifespan: Less than 6 months under frequent use.

Application: Suitable for startups or entry-level projects.

Summary

Entry-Level Fit: DX10 fits small, low-volume applications, offering a basic level of color output.

Key Limitation: Lower nozzle count and speed lead to poor performance in larger production tasks.

Dual-Head Required: In practice, most setups using DX10 need two separate heads — one for CMYK and one for white ink — increasing system complexity and operational difficulty.

Short Service Life: Frequent head replacements drive up maintenance costs significantly.

Epson I3200/I1600/DX7/DX10 Parameter Comparison

Feature	iWP-001Pro (Epson I3200(8))	Epson DX7	Epson I1600	Epson DX10 (TX800)
Number of Channels	8	8	4	6
CMYKW One-Pass	Yes	Yes	No (needs dual heads)	Yes
Nozzles	3,200	1,440	1,600	1,080
Industrial-grade	Yes	No	No	No
Max Resolution	4800 dpi	2880 dpi	2400 dpi	1440 dpi
Lifespan	3–5 years	1–2 years	1–2 years	< 6 months
Print Gloss(Varnish)	Yes	No	No	No
UV DTF(Direct-to-Film)	Yes	No	No	No
Stickers Making	Yes	No	No	No

Single Printhead or Dual Printhead？

The wall printer machine usually come in single or dual printhead setups. Choosing the right configuration is critical for overall performance and maintenance ease.

Why We Recommend Single Printhead

Easier to operate: No need for complicated alignment. Single-head systems are easier to calibrate.

Lower maintenance: Single-head setups reduce cleaning, purging, and troubleshooting complexity.

Better printing stability: Fewer synchronization problems, shorter ink paths, and more consistent results.

Higher production efficiency: Less downtime, less risk of quality problems.

Final Conclusion

Among the options, Epson I1600 et DX10 looks like more suitable for entry-level users or small-scale, budget-restricted projects. However, they come with significant trade-offs, including shorter lifespan, lower speed, and the need for more complex dual-head configurations to achieve full-color and white printing.

After carefully evaluating different printheads, we selected Epson I3200 et DX7 for our wall printers because they provide the best combination of speed, quality, durability, and overall value.

Epson I3200(using by iWP-001Pro) is an industrial-grade printhead that offers high-speed CMYKW printing, supports DTF transfers, and delivers reliable long-term performance.

Epson DX7(using by iWP-001) is a proven and cost-effective solution for stable, high-quality wall printing with a favorable balance between performance and affordability.

Concerned about Epson I3200 wall printer price?
No need — iWP will bring you all the advantages of the industrial-grade I3200 technology at an incredibly competitive, hard-to-resist price, contact us now!
